C Frame Injection Press

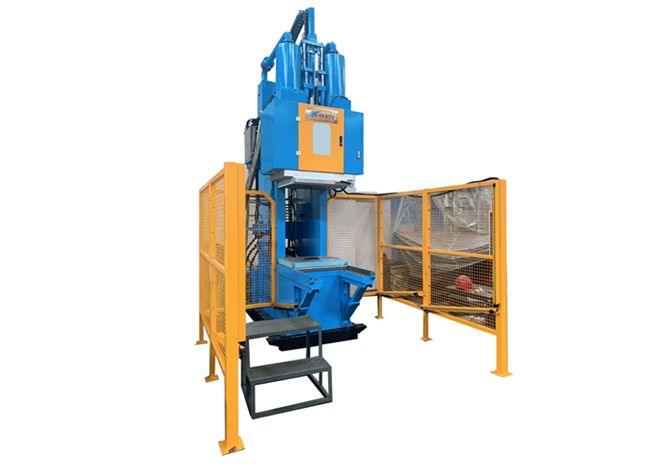

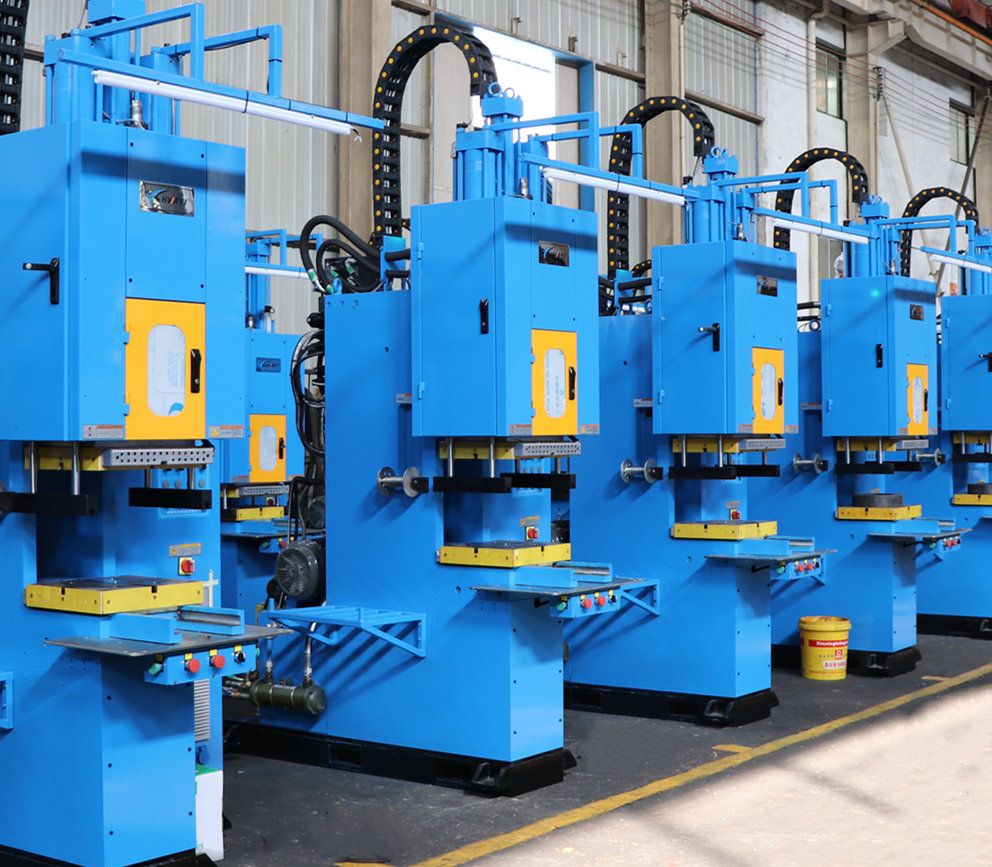

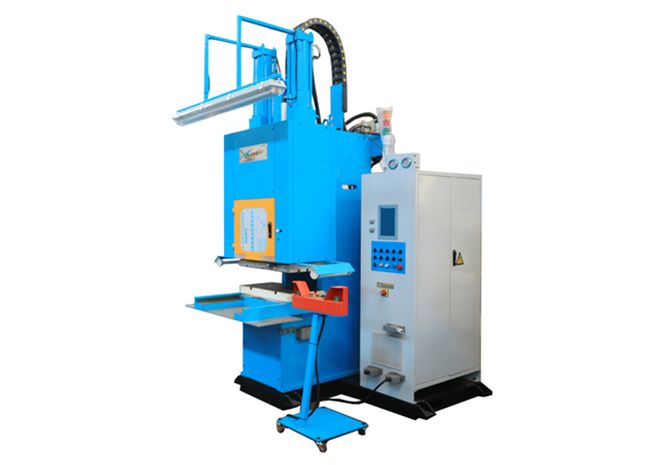

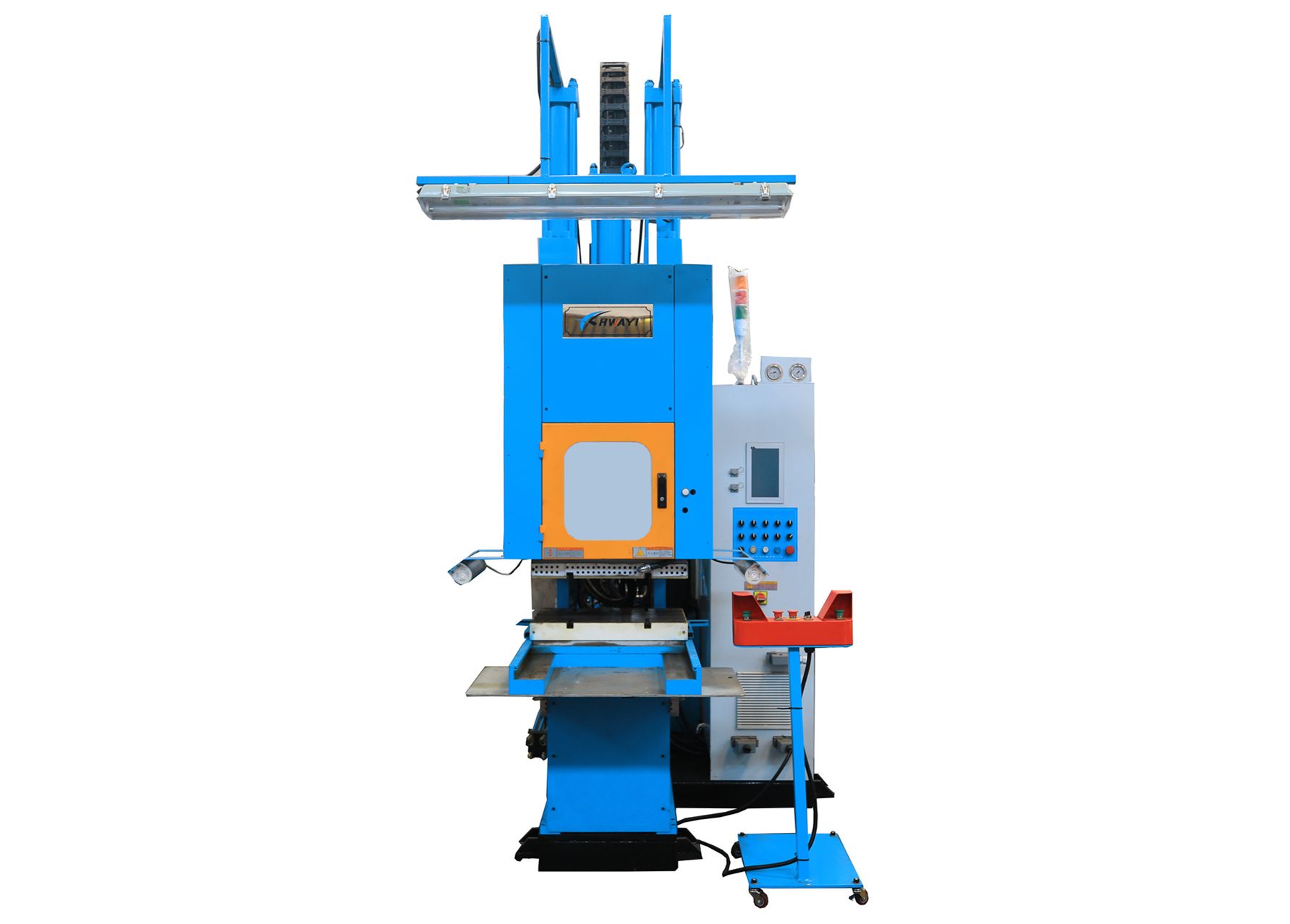

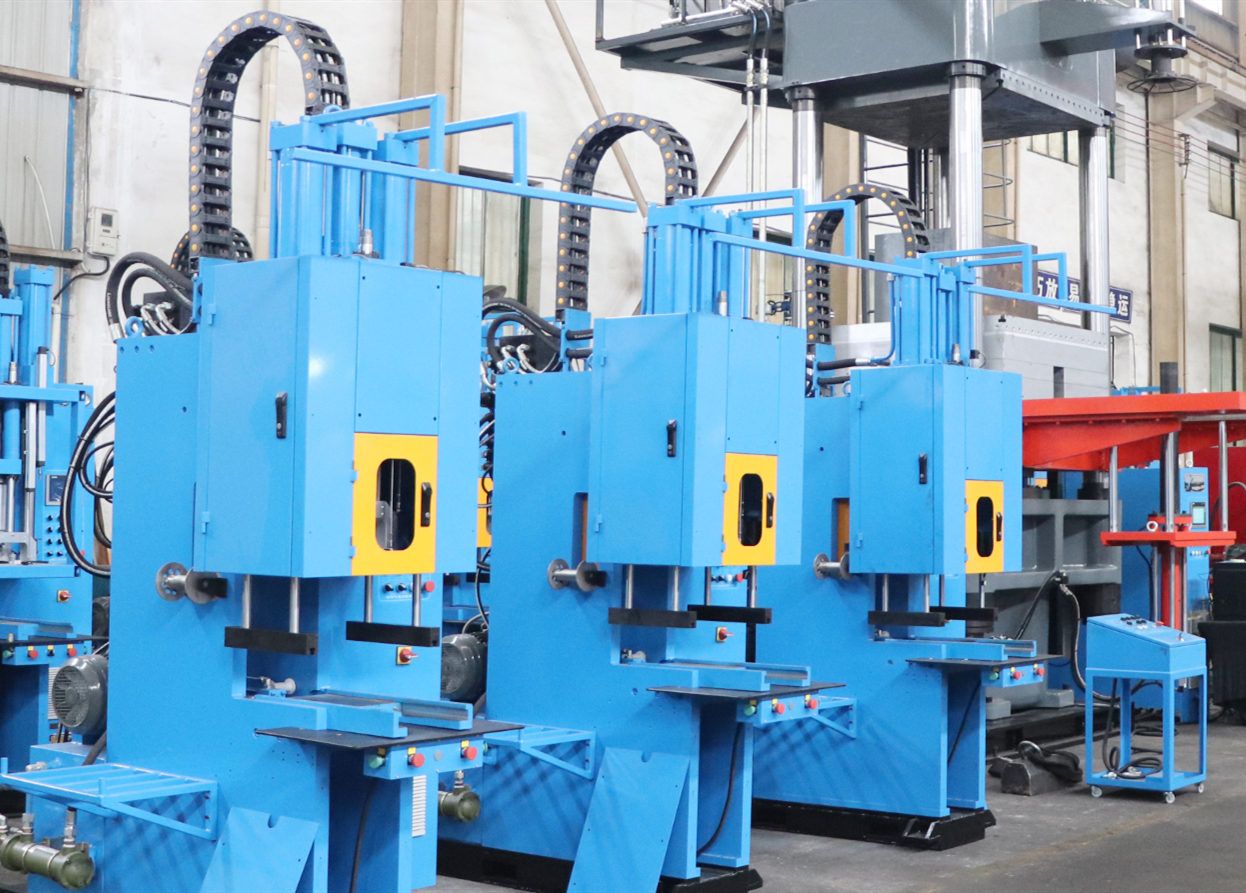

C Frame Rubber Injection Press

C frame rubber injection press is Huayi hot sales rubber injection press with C frame clamping structure, suitable for molding EPDM profiles joints of car window sealing system by injection way. Sturdy machine structure,swift dynamic response,high precision,high safety and convenient operation and service support makes C frame injection press sell hot in domestic market while exported many foreign countries.

EPDM sealing strips junctions molding press;

C frame structure , complete open structure;

No Injection runner, All in all out injection system, top injection or bottom injection;

No need check valve and metering, more accurate injection;

Injection accuracy is ±0.5%， CPK ≥1.67

Platens temperature tolerance within ±2°,PID temperature calibration,Germany imported insulation plates.

No broken rubber in the feeding area

Double working station is optional

Upper lifter, sliding, ejector ,core pulling valves adopts for different mold requirements.

CE Certification option is available

Get A Free Quote

Get The Brochure

Product Description

C Frame rubber injection press,specialized in molding EPDM,Natural rubber sealing profiles corners/junctions/joints by injection way. Open C frame structure with more free sparece, operators can insert profiles conveniently, widely used by the world famous vehicle window sealing system companies.

Item	HYZ-15J	HYZ-30J	HYZ-50J	HYZ-80J	HYZ-160J	HYZ-200J	HYZ-250J

Item	HYZ-15J	HYZ-30J	HYZ-50J	HYZ-80J	HYZ-160J	HYZ-200J	HYZ-250J
Clamping Force(KN)	150	300	470	800	1600	2000	2500
Injection Volume(CM³)	100	160	150/300	300	600	300	300
Heating Platen Size(W*L/MM)	450*350	300300/350400	450*400	700*500	750*650	700*600	750*650
Daylight (MM)	450	350	400	640	850	780	1000
Max.Clamping Stroke(MM)	400	300	350	500	500	600	700
Min.Mold Thickness(MM)	60	60	60	150	350	180	300
Total Power (KW)	20	20	21	28	28	28	60
Machine Size (M)	1.61.42.9	1.812.7	213	2.51.53.5	2.51.54	2.51.54	434.5
Machine Weight(T)	1.5	2	3	6.5	8	9	16

C frame rubber Injection press features

Sturdy machine structure

Finite element analysis ensures rigidity of c frame structure
Platens parallelism defects less than 0.06mm
European oil seals and oil couplings, well-knit oil manifolds & pipe connnections ensure no oil leakage

Swift dynamic response

Most advanced Siemens control system with high speed calculation modules promote swift dynamic response

High precision

Germany top brand injection transducer, Injection Injection volume tolerance ±0.5%, CPK >=1.67, temperature control on injection unit within 2°difference
Platens temperature tolerance within ±2°,PID temperature calibration; Germany imported insulation plates prevents heat loss efficiently.

High safety

Low pressure mold clamping protection,Rexroth safety salves, full safey protection guards and sensors, which conforms to CE standard rubber injection press

Saving energy

Servo driven system applied for saving 20%-50% power, max 80% power can be saved in the cold climate

Convenient operation and service support

Humanized operation interface, USB data load /download, multi passward management, remote wireless monitoring and maintenance.
