Rubber Injection Machine

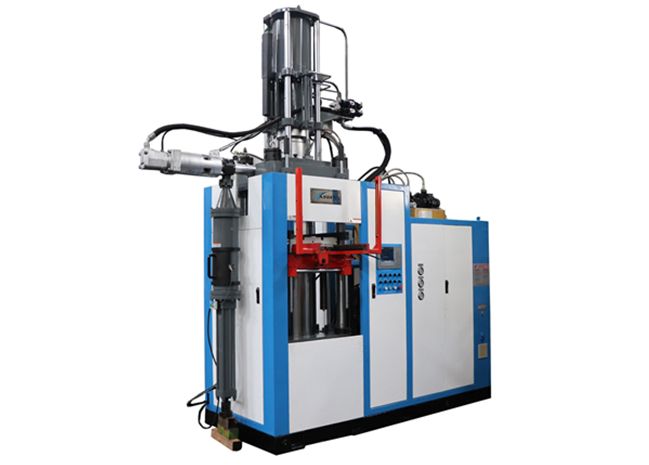

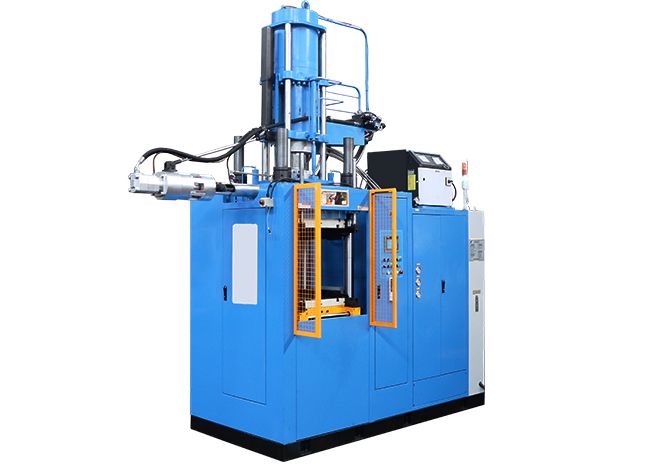

Rubber Injection Machine HYZ-E Series

Vertical Rubber Injection Machine, Huayi Hot sale rubber injection machiner series, retractable injection nozzle and full safe guards,can be updated to CE standard rubber injection machine. Also hydraulic power bank and electrical control unit are located rightly, give more space for mold operation

Four-column vertical structure ensures machine durability;

Right located oil tank, electrical cabinet and control panel, more back space for mold movements

HTV silicone rubber material feeder is optional making silicone rubber insulators, arresters, fuse cutout,cable joints,bushings and other cable accessories

Multi phases injection pressure and speed adapts different rubber molds production;

Sturdy design of clamping unit for high stability and parallelism;

Siemens response electrical controlling;

PLC monitor entire production process, 300 sets of production recipes can save and USB data transmission conveniently

Platens temperature tolerance within ±2°,PID temperature calibration; Germany imported insulation plates prevents heat loss efficiently.

Multi demolding devices can be adopted

CE Standard Rubber Injection Machine option is available

Get A Free Quote

Get The Brochure

Product Description

CE standard rubber Injection Molding Machine

Item	HYZ-100E	HYZ-200E	HYZ-300E	HYZ-400E	HYZ-500E		HYZ-600E	HYZ-400E	HYZ-800E	HYZ-1200E	HYZ-1500E

Item	HYZ-100E	HYZ-200E	HYZ-300E	HYZ-400E	HYZ-500E	HYZ-600E	HYZ-400E	HYZ-800E	HYZ-1200E	HYZ-1500E
Clamping Force(KN)	1000	2000	3000	4000	5000	6000	4000	8000	12000	15000
Injection Volume(CM³)	1000	2000/2400	3000	3000/4000	3000/5000	5000/8000	4000	8000	12000	15000
Heating Platen Size(W*L/MM)	500*500	550*550	600*700	700*700	700*700	900*1100	800*800	1000*1000	1400*1400	1400*1400
Space Btwn Platens(MM)	500	570	750	750	750	1000	1000	1400	1900	1900
Dimension Between Tiebar(MM)	610*335	650*360	710*510	860*490	770*550	1010*560	990	1240*790	1500*900	1540*860
Max.Clamping Stroke(MM)	450	500	600	600	700	800	760	1000	1000	1000
Min.Mold Thickness(MM)	60	80	160	160	60	210	250	400	910	910
Total Power (KW)	22	28	40	53	55	55	/	/	/	/
Machine Size (M)	1.61.12.9	3.51.63.9	3.824.6	4.22.74.8	4.22.74.9	4.32.85	/	/	/	/
Machine Weight(T)	2.5	8	11	13	16	42	/	/	/	/

HYZ400E,HYZ-600E,HYZ-800E,HYZ-1200E and 1500E can be equipped with steam heating,which used for making tyr

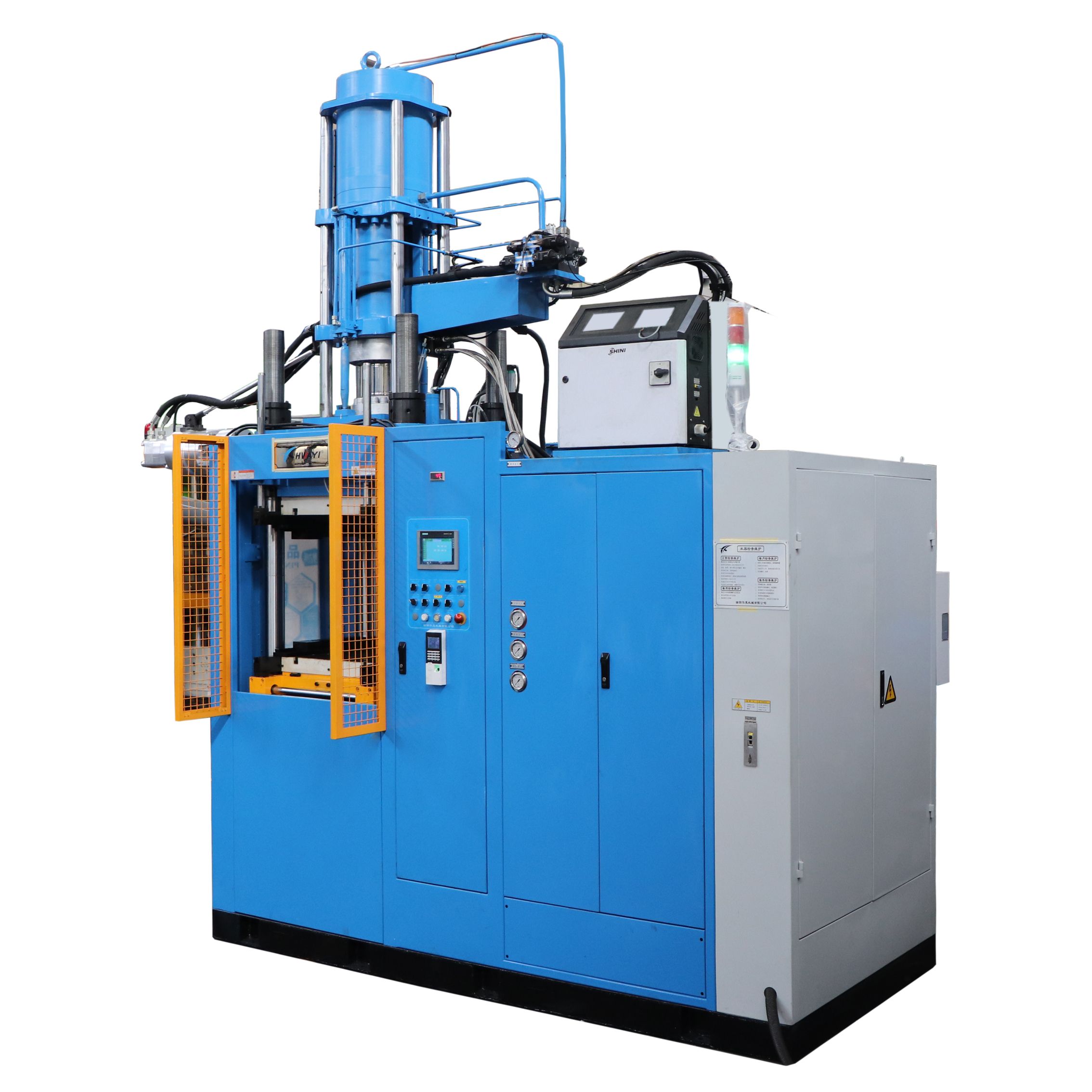

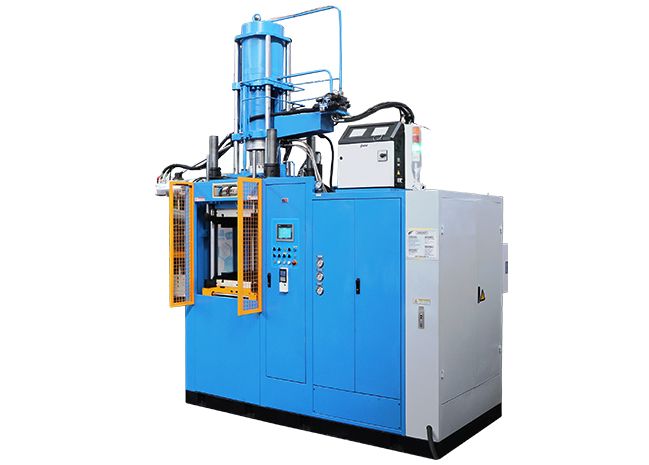

CE Standard Rubber Injection Machine

CE standard machine, CE safety rely, CE light curtains, Rexroth safety valves, low pressure mold protection, CE components, anti-burst hydraulic chains...

Four-column vertical structure ensures machine durability;
Right located oil tank, electrical cabinet and control panel, more back space for mold movements
HTV rubber material feeder is optional making cable joints,bushings and other cable accessories
Multi phases injection pressure and speed adapts multi molds production;
Sturdy design of clamping unit for high stability and parallelism;
Siemens or B&R fast response electrical controlling;
PLC monitor entire production process, 300 sets of production recipes can save and USB data transmission conveniently
Platens temperature tolerance within ±2°,PID temperature calibration; Germany imported insulation plates prevents heat loss efficiently.
Multi demolding devices can be adopted
CE Certification option is available
