Rubber Vulcanizing Machine

Rubber Compression Molding Machine

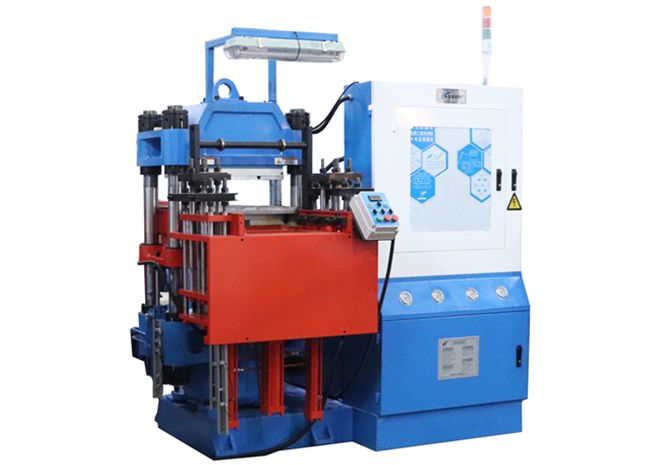

Rubber compression molding machine is the base of rubber molding machine, also called hot heating vulcanizing machine, hot pad press, rubber vulcanizier, is an traditional and old method to making rubber parts in the world, also is the most economic way to making rubber products

Rubber compression molding machine is suitable for vulcanizing rubber parts of natural rubber, acrylonitrile rubbers, ethylene-propylene diene copolymer, chloroprene rubber adhesive, solid silicon. Huayi vulcanizing press with below features:

1. Siemens advanced PLC&HMI, Japan Yuken oil pump and valves;
2. Open oil circuit, easy for maintenance;

3. Oil manifold for clear oil circuit distrubition and gathering;
4. Heating platen temperature controlling precision ±2 degree,with PID temperature calibration;
5. Reclamping during vulcanizing;
6. Motor stops during curing or dewell for saving energy;
7. Remote service support provide wireless machine monitoring and maintenance;
8. Different demould devices for selection, 2RT,3RT,4RT,4RT with core pullers...;
9. CE standard compression molding machine is available.

Get A Free Quote

Get The Brochure

Product Description

Rubber compression molding machine is the base of rubber molding machine, also called hot heating vulcanizing machine, hot pad press, rubber vulcanizier, is an traditional and old method to making rubber parts in the world, also is the most economic way to making rubber products，below is parameters of HUAYI HYL-P series rubber compression molding machine：

Item	HYL-100P	HYL-200P	HYL-300P	HYL-400P	HYL-600P	HYL-800P	HYL-1000P	HYL-1200P	HYL-2000P

Item	HYL-100P	HYL-200P	HYL-300P	HYL-400P	HYL-600P	HYL-800P	HYL-1000P	HYL-1200P	HYL-2000P
Clamping Force(KN)	1000	2000	3000	4000	6000	8000	10000	12000	20000
Platen size(MM)	450*450	510*510	600*600	700*700	900*1100	1000*1200	1200*1400	1500*2000	2000*2000
Space between platens(MM)	350	350	350	350	900-1300	850	1100	1100-1400	900-1300
Dimension between tiebar(MM)	610*225	690*290	790*340	860*490	1110*710	1300*700	1300*700	1800*1000	2440*1240
Max.Clamping Stroke(MM)	300	300	300	300	800	700	900	1100	900
Min.Mold Thickness(MM)	60	60	60	60	110-510	150	210	0-310	0-410
Sliding Stroke(MM)	540	600	650	750	600	1300	1400	2010	/
Ejection Stroke(MM)	260	260	260	260	450	450	450	450	/
Total Power (KW)	38	50	51	55	60	85	85	38	45
Machine Size (M)	3.22.12.3	3.62.32.5	3.62.52.6	42.82.8	3.534	4.52.23.5	4.62.14.7	6.32.44.7	6.33.25.2
Machine Weight(T)	7.5	10	13	18	18	30	40	60	120

Features

Rubber Vulcanizing Machine

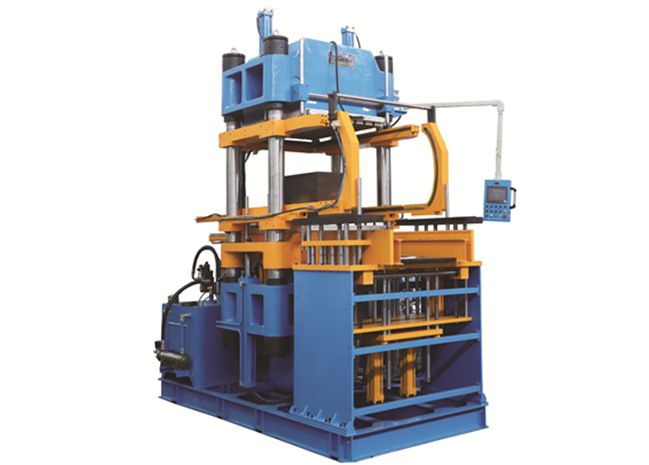

Adopt four-column structure with the split structure design between the front auxiliary unit and moving plate.
It is suitable for many kinds of de-moulding methods and mould usage.
This type machine is suitable for large rubber products making ,such as railway shock absorption part etc.
