Huayi Rubber Machine / Products/ Composite Rubber Insulators Molding Machine

Composite Rubber Insulators Molding Machine

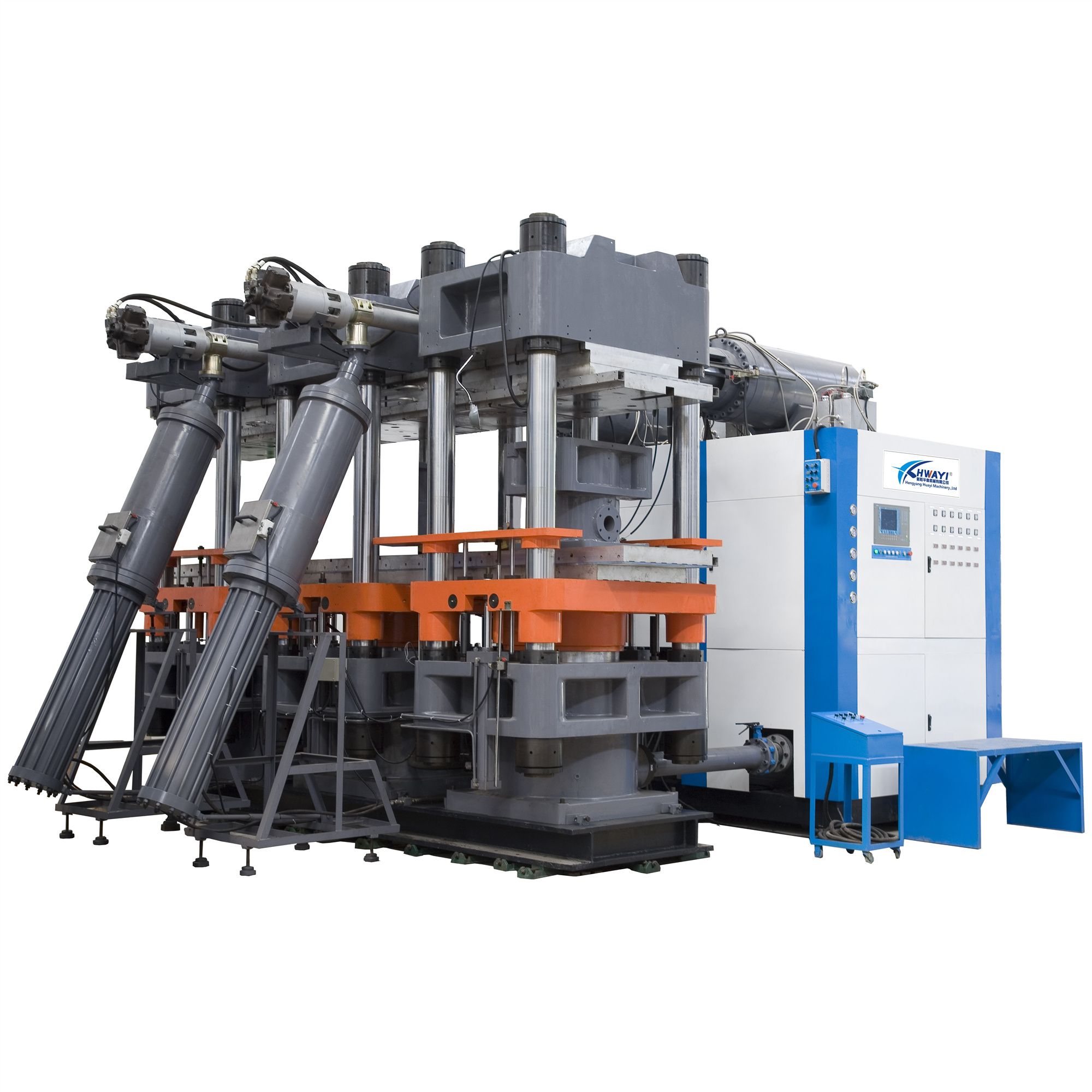

Compact Rubber Insulators Injection Machine

Rubber Insulators Injection Machine, with double cylinders, patent design, suitable for composite insulators, arrestors, hollow core bushings with solid silicone rubber material, HTV rubber material injection molding machine.

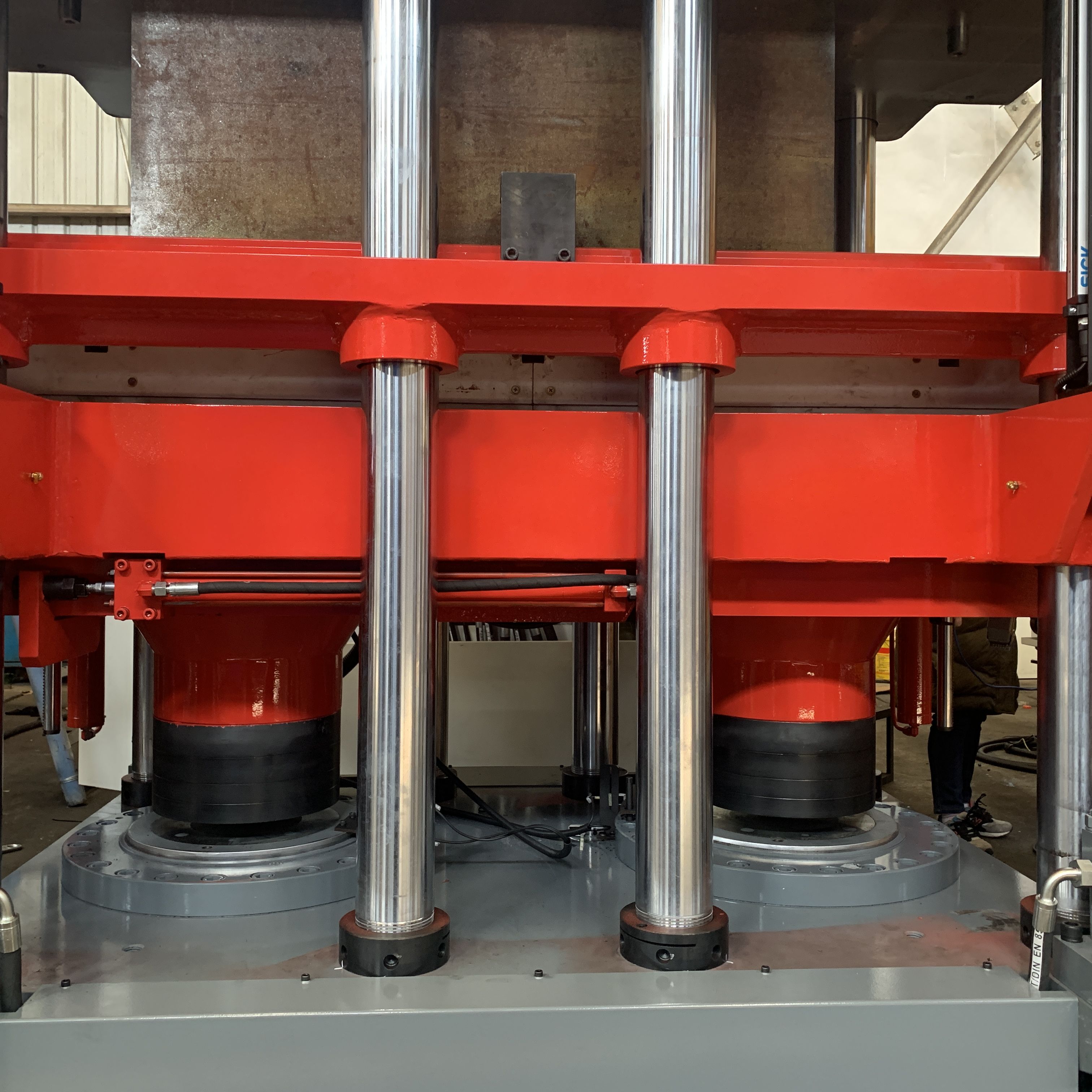

  • More even clamping force
Double clamping cylinders provide more even clamping force distribution than single cylinder.
one-piece struture clamping platen and pistons set platen, sturdy and durable.

  • Super lower working height
Moveable clamping pads move in when mold clamp; and move out while mold open.
Working height is less than 1000mm

  • Concise, space saving design

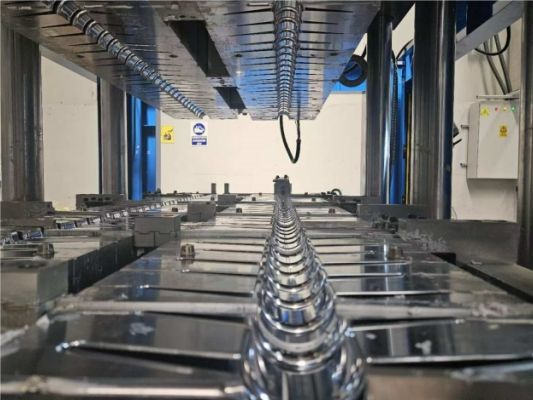

Suitable for long rod insulators in multi molding steps, national patent applied on this design and application.

  • Remote service support provide wireless machine monitoring and maintenance
In order to provide fast service support for PLC program update or modification, and maintenance.
Get A Free Quote
Get The Brochure

Product Description

Rubber Insulators Injection Machine, with double cylinders, patent design, suitable for composite insulators, arrestors, hollow core bushings with solid silicone rubber material, HTV rubber material injection molding machine.

ItemHYZ-550BHYZ-650BHYZ-880BHYZ-1000BHYZ-1800B

Injection volume(cc)      15000200002500040000100000
Heating platen size(MM)      630*2000

850*2300900*2200850*23001000*2600
Space Btwn Platens(MM)     650

65075016001600
Dimension Between Tiebar(MM)     800*1430

1020*15301020*1530as per designas per design
No.of tiebar                                         8 columns

8 columns 8 columns 8 columns 8 columns
Max. Clamping Stroke(MM)    400

400400900900
Min.Mold Thickness(MM)    250

250250700700
Nos of Clamping Cylinders     2

2222

Application                   HTV Insulators Solution
Machine ModelHYZ-550B
HYZ-650B
Insulators(KV)66kv-220kv insulators
110KV Hollow Core Insulators
Molding Step                   One                                                  ONE
Mold CavitiesTwo
ONE


























Rubber Insulators Injection Machine Standard Design

  • Sturdy structure with four columns, horizontal injection unit and horizontal plasticizing unit
  • Direct clamping cylinder,clamping from the bottom
  • Completely open stuffer,large injection volume, bigger clamping stroke,suitable for more sets of insulators rubber molds
  • Huayi provide more models to adopt different production requests, from HYZ-200B to max HYZ-2400B.

Find Our Stories

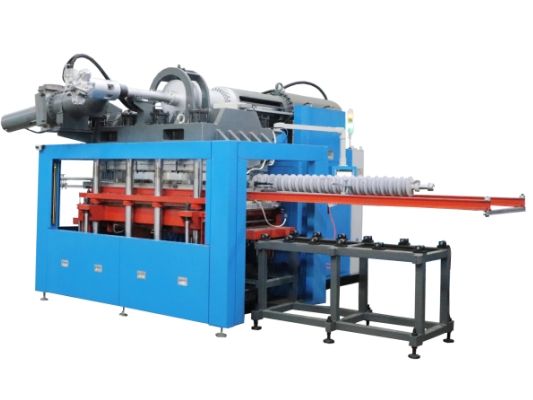

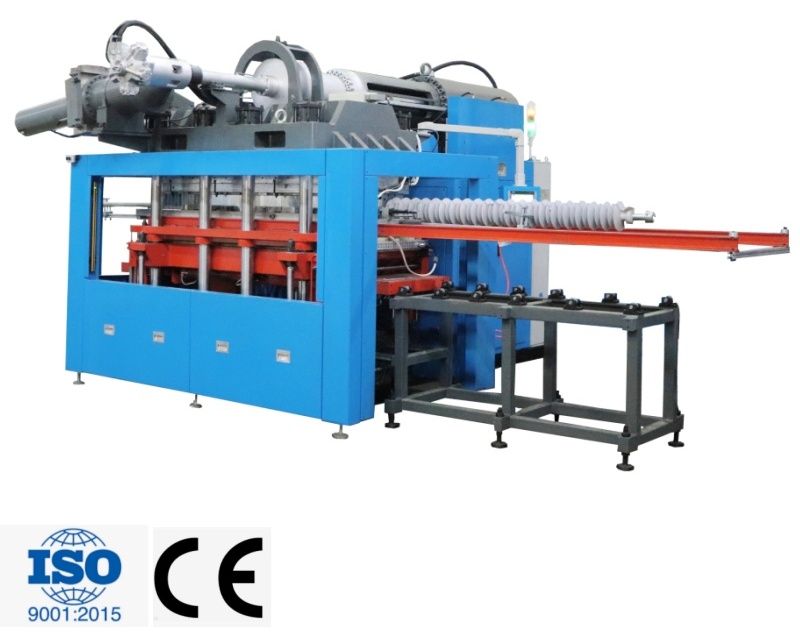

Double Cylinders Silicone Rubber Injection Machine for Long Rod Insulators

How to improve the production efficiency and save labor cost while making the long rod insulators? Huayi new patented product-Double Cylinders Silicone Rubber Injection Machine can do it very well!

View Details
