Rubber Injection Machine

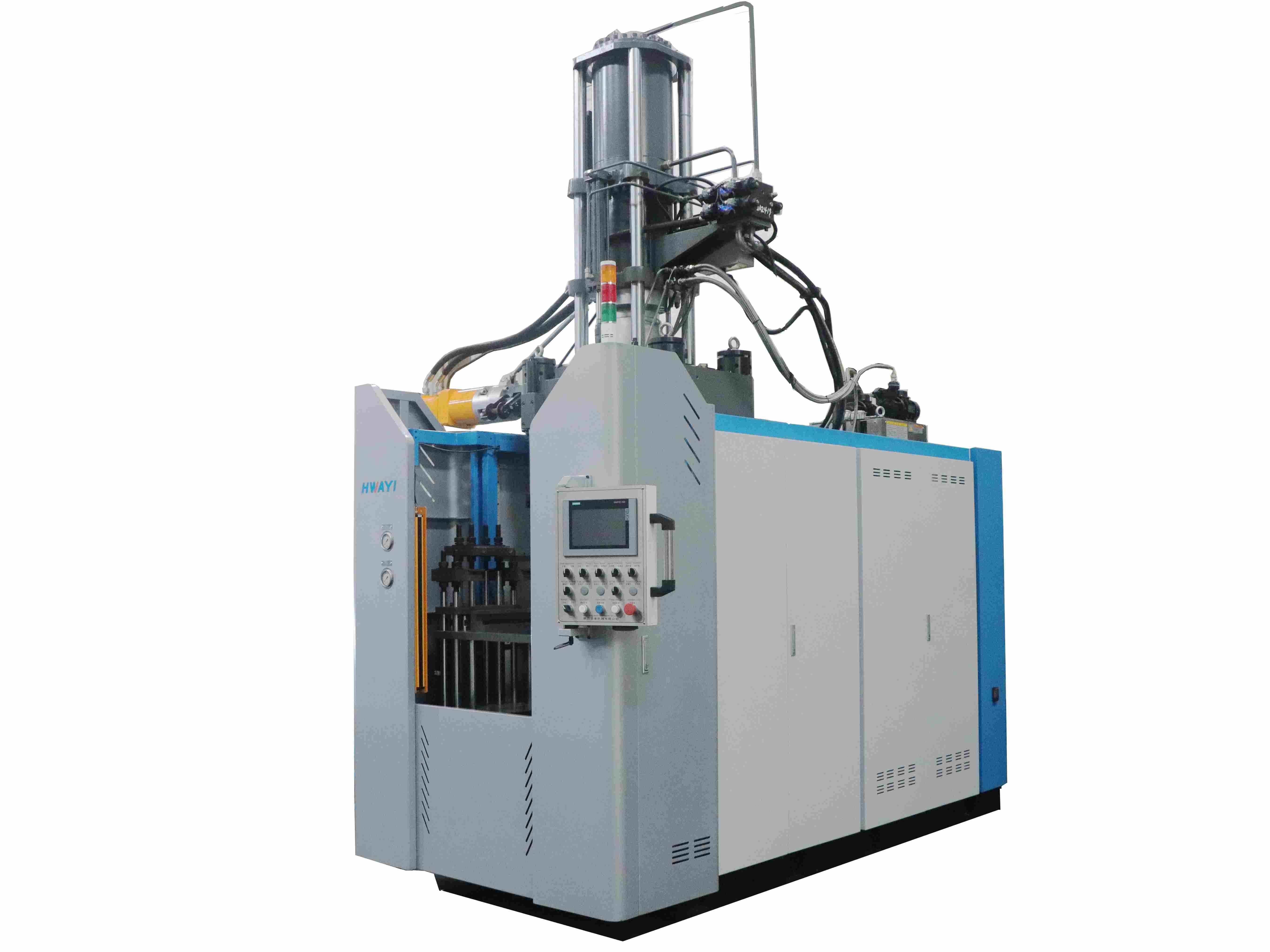

Rubber Injection Machine HYZ-A Series

Huayi HYZ-E Series, vertical rubber injection machine, with vertical injection unit is on the center axis of the clamping pressure, can provide powerful injection pressure and high injection speed, and vertical rubber injection machine is most traditional rubber injection machine design in the world.

Four-column vertical rubber injection machine ensures machine durability;

First in last out injection way, high speed injection, less injection pressure loss;

Multi phases injection pressure and speed can be adjustable;

Equipped with fast clamping cylinders to achieve slow-fast-slow clamping speed, low pressure mold clamping protection controlled by PLC ensure no injuries for molds or operator;

Sturdy design of clamping unit for high stability and parallelism;

Siemens fast response electrical controlling system, simple operation interface and flexible automatic flowchart selection;

PLC monitor entire production process, 300 sets of production recipes can save and USB data transmission conveniently

High precise heating platen temperature controlling,PID temperature automatic calibration by PLC;

Germany high performance heating insulation plates effectively prevents heat loss;

Independent temperature detection and control for rubber machine injection unit, plastic unit, Huayi own made TCU with compact size and accurate temperature controlling ,which interlock with machine PLC;

Multi demolding devices can be selected as per various rubber molds production requests;

CE Certification option is available;

First in First out injection is available

Get A Free Quote

Get The Brochure

Product Description

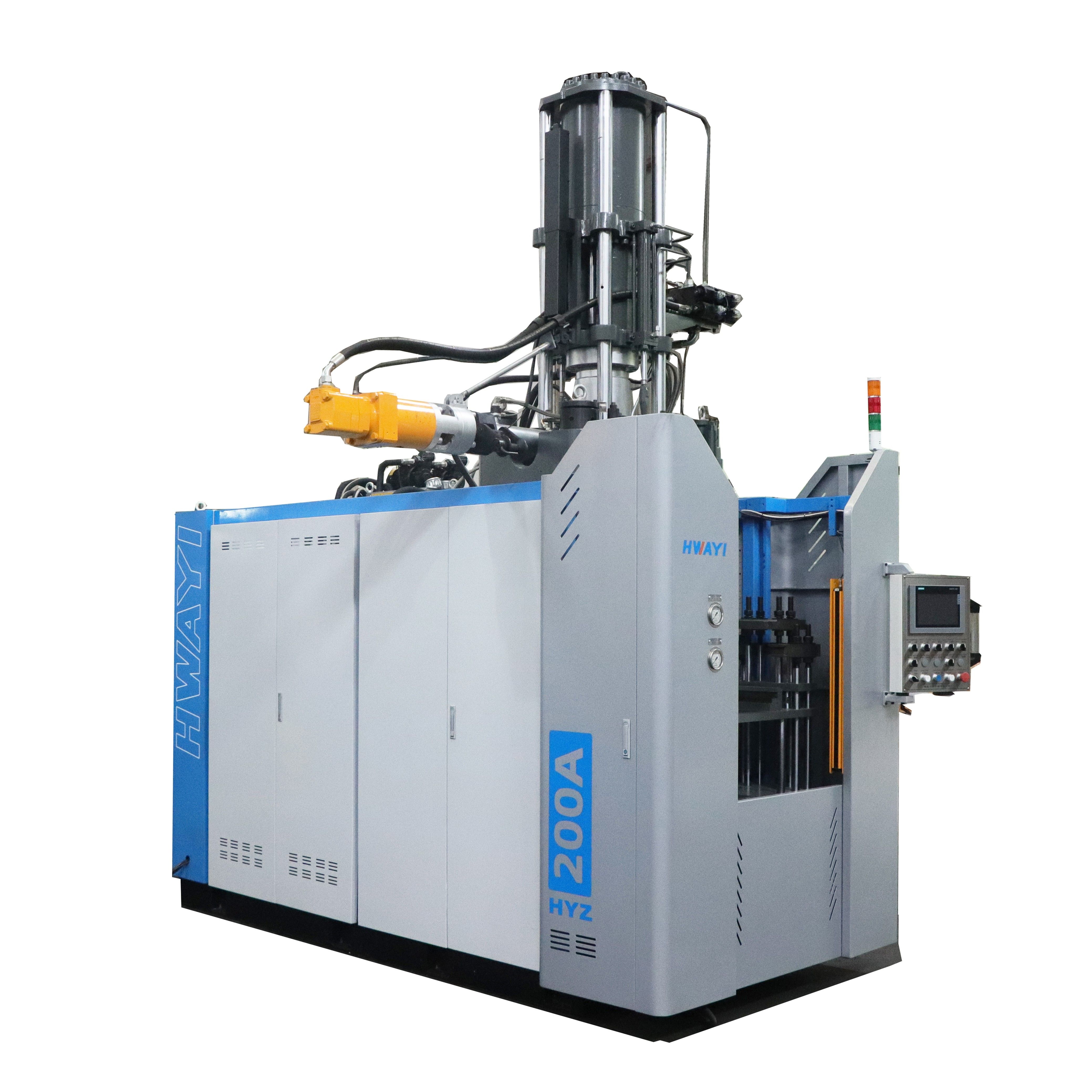

Huayi rubber injection machine HYZ-A Series, is vertical rubber injection molding machine, simple features as below: 1. vertical injection unit with retractable nozzle; 2.four-column structure sturdy clamping unit, 3.last in first out injection way, multi-phase injection speed & pressure setting adapt various molds production demand; 4. external demoulding devices,safe and flexible operation; 5. easy maintenance on mechanical & hydraulic parts layout. 6. Servo motor controlled hydraulic system

Item	HYZ-100A	HYZ-200A	HYZ-300A	HYZ-400A	HYZ-500A	HYZ-580A

Item	HYZ-100A	HYZ-200A	HYZ-300A	HYZ-400A	HYZ-500A	HYZ-580A
Clamping Force(KN)	1000	2000	3000	4000	5000	5800
Injection Volume(CM³)	1000	2000/2400	3000/4000	3000/4000	3000/5000	5000/6000
Heating Platen Size(W*L/MM)	500*500	550*550	600*700	700*700	700*700	700*700
Space Btwn Platens(MM)	500	570	750	750	750	750
Dimension Between Tiebar(MM)	610*335	650*360	720*520	860*490	770*550	930*560
Max.Clamping Stroke(MM)	450	500	600	560	700	700
Min.Mold Thickness(MM)	60	80	160	160	60	60
Total Power (KW)	25	28	40	45	55	55
Machine Size (M)	2.71.23.1	3.22.13.9	3.52.54.6	4.22.54.5	4.22.54.6	4.22.54.7
Machine Weight(T)	5.5	8	11	12.5	15	23

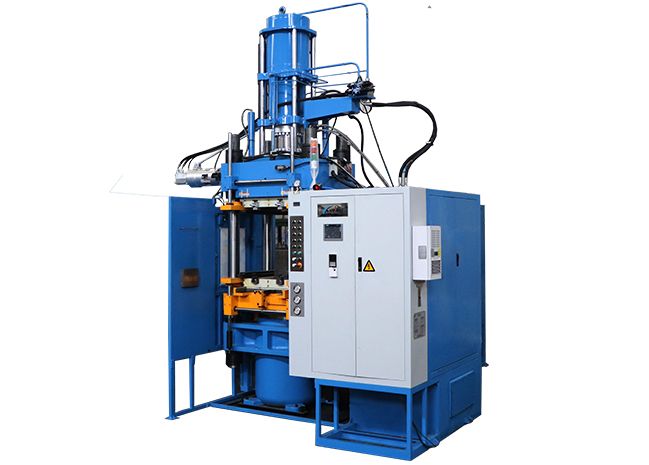

Application One on vertical rubber injection machine

First in first out injection way

First in first out injection way on rubber injection machine is mature technology;
Vertical rubber injection machine with FIFO injection unit can reduce the machine total height;
FIFO injection easily clean the plasticing screw and injection piston ;
The first plasticized rubber will be injected firstly which stay less time inside injection cylinder, suitable for the rubber material with short curing time or sensitive to the curing temperature;

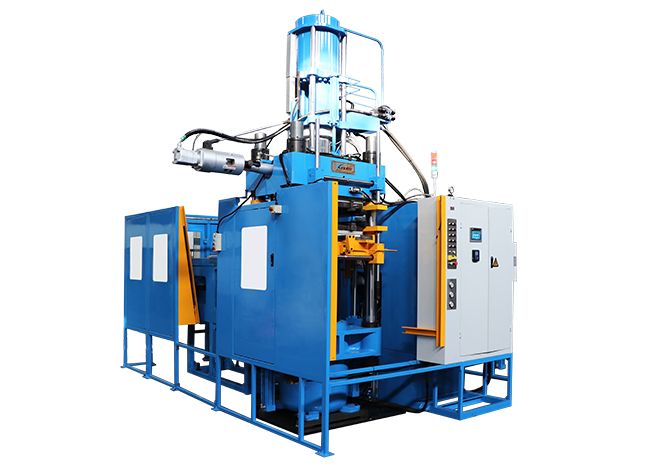

Application Two on vertical rubber injection machine

Compact structure,less space accupied

New design with moveable clamping pad, less hydraulic oil usage;
Adjustable clamping stroke, machine working height less than 1000mm;
Built-in sliding hydraulic cylinder, back space saved;
Sliding table driven by hydraulic motor instead of cylinder for saving space

Vertical rubber injection machine application

Suitable for making automotive rubber parts,auto-rust bushings, CV boots, grommets,gaskets, auto-shocks parts, engine mounted parts...

Below is the picture show some machine in customer plants
